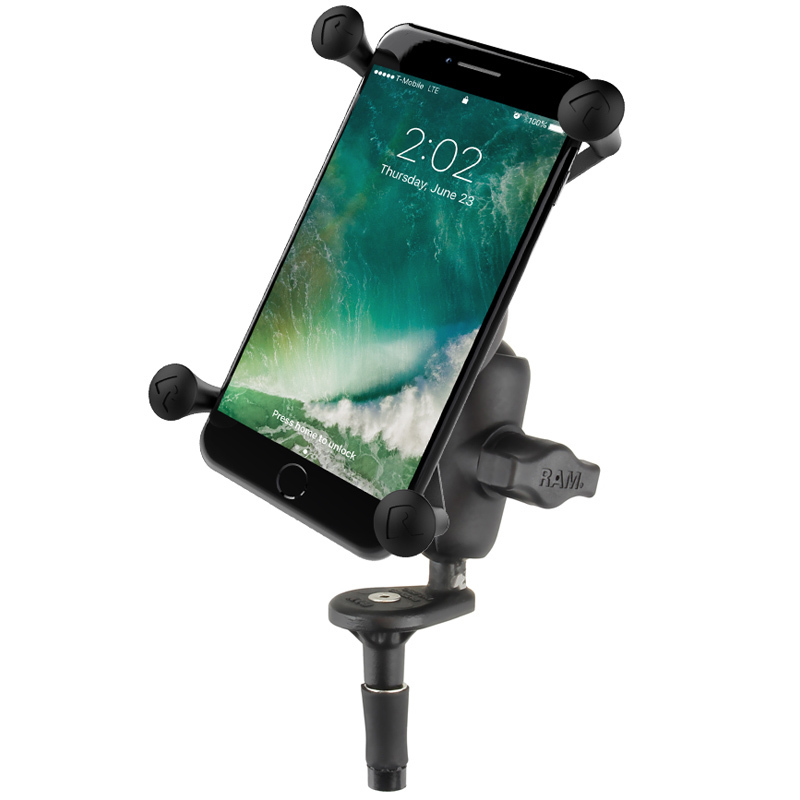

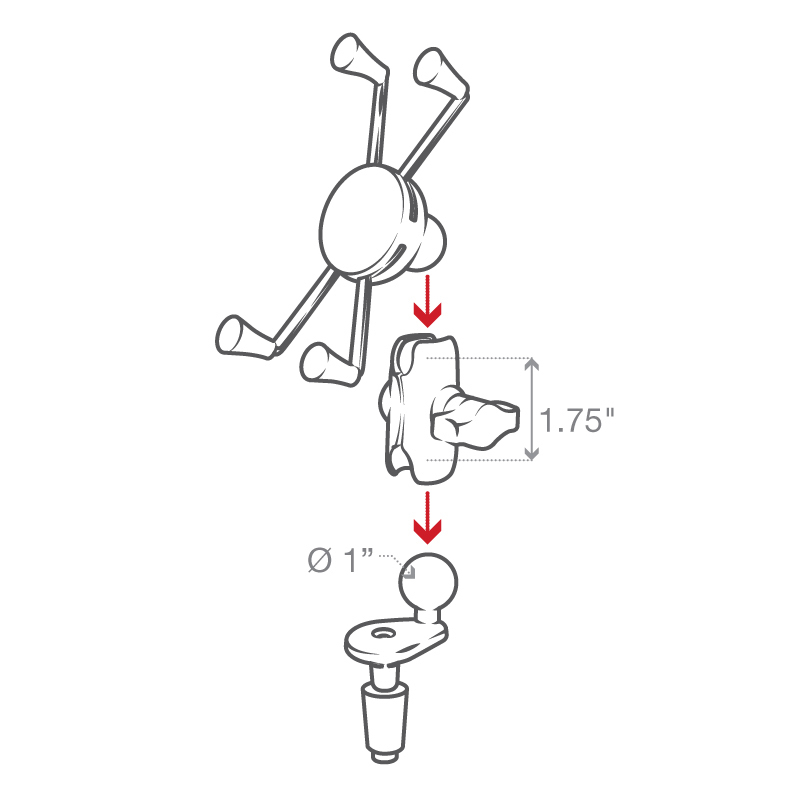

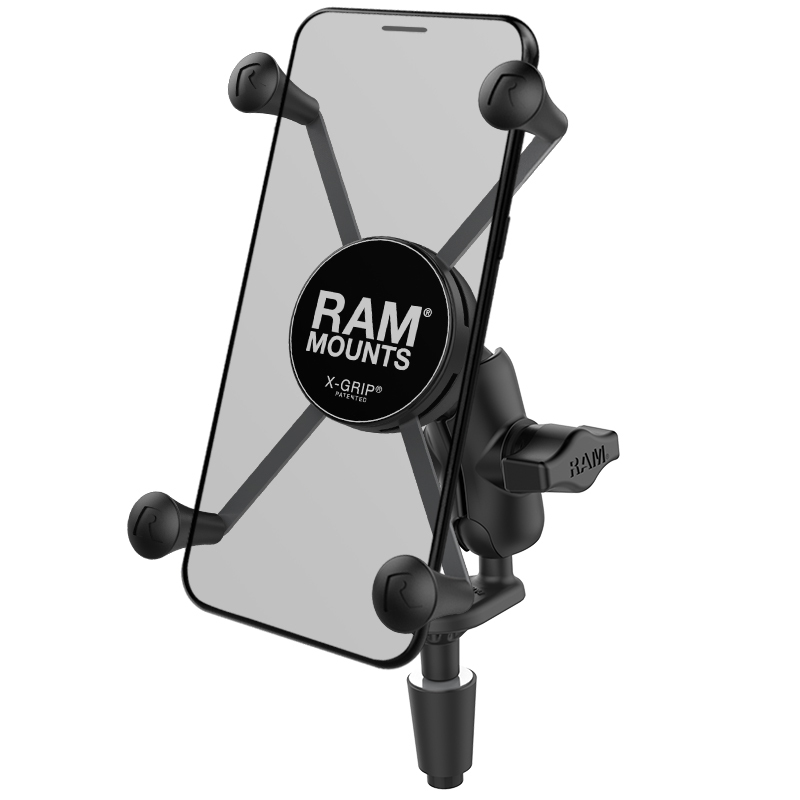

The RAM-B-176-A-UN10U consists of a fork stem base, short double socket arm and universal X-Grip® cradle for large phones. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone.

The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

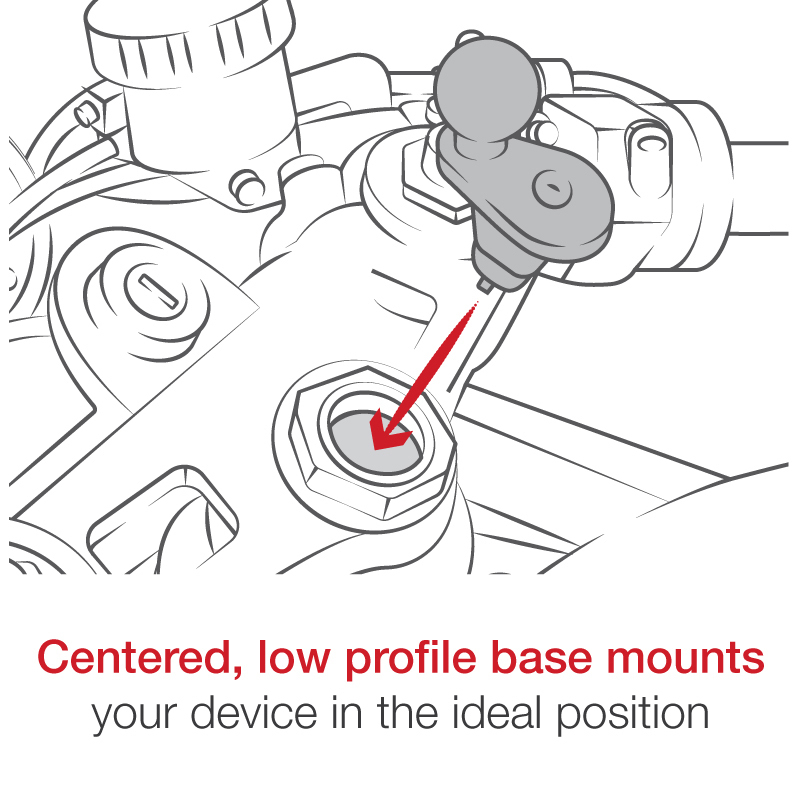

This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 33mm (.5” – 1.29”).

Specifications:

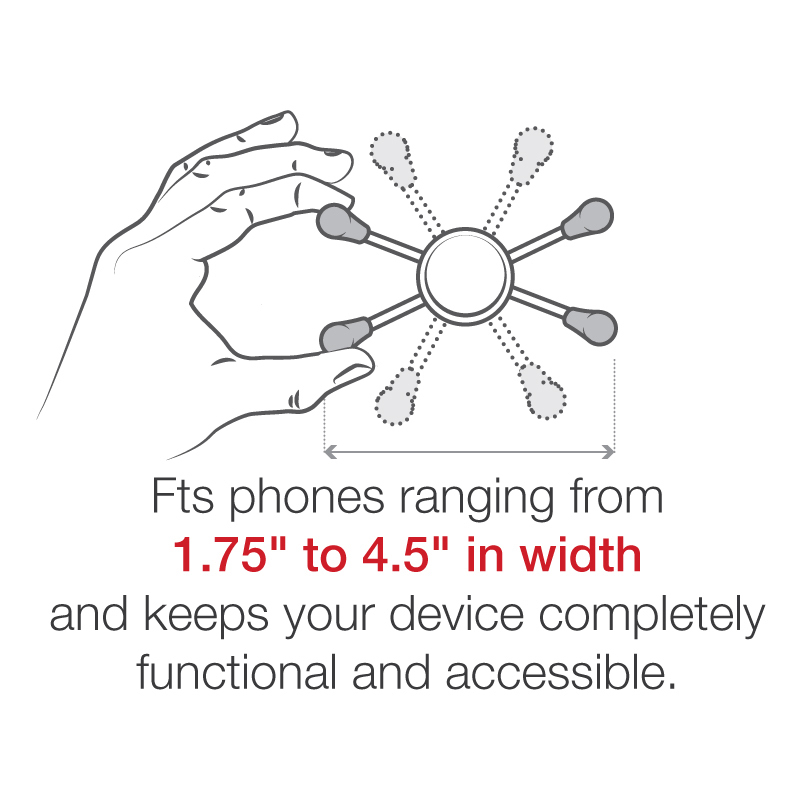

• Cradle Dimensions:
  Minimum Width = 1.75" (Minimum Height = 5.5")
  Maximum Width = 4.5" (Minimum Height = 3.25")
  Depth = 0.875"
• Material: Powder Coated Marine Grade Aluminium, Marine Grade Stainless Steel Components & High Strength Composite
• Ball Size: 1" Rubber Ball "B" Size

RAM Fork Stem Installation Instructions (PDF)
