RAM-B-177U - RAM® Glare Shield Clamp Mount with Diamond Plate

Description
Specifications

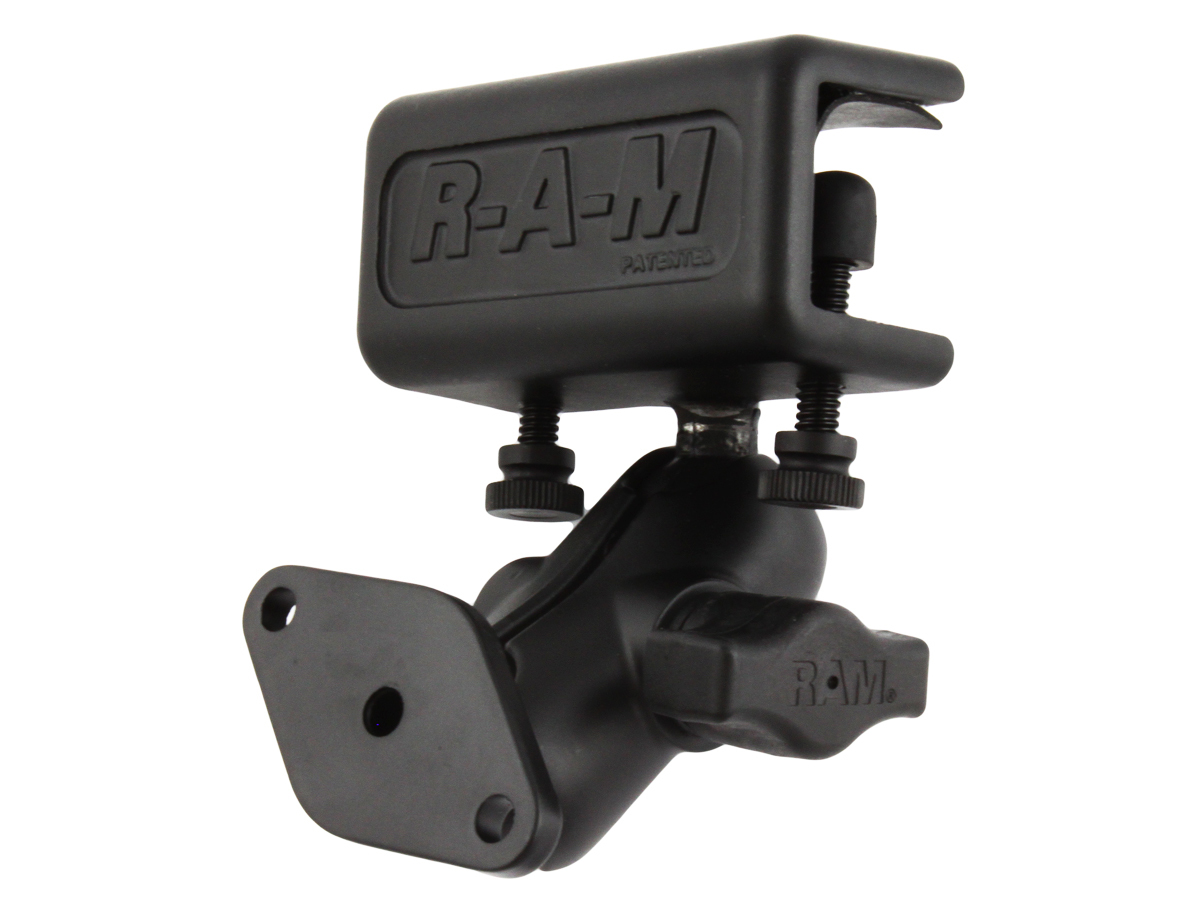

The RAM-B-177U consists of a double socket arm, glare shield clamp base and diamond base adapter. The RAM-B-177U is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and connection plates to create the perfect mount for your application. The hole pattern found on the diamond base adapter will connect to most RAM cradles.

Mount will attach to flat surfaces with the following dimensions:
Min: 4.4mm / 0.17"
Max: 28.0mm / 1.12"

Specifications:

Material: Powder Coated Marine Grade Aluminium
Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag.

RRP	92.95
Barcode #	793442907067
Brand	RAM Mounts
