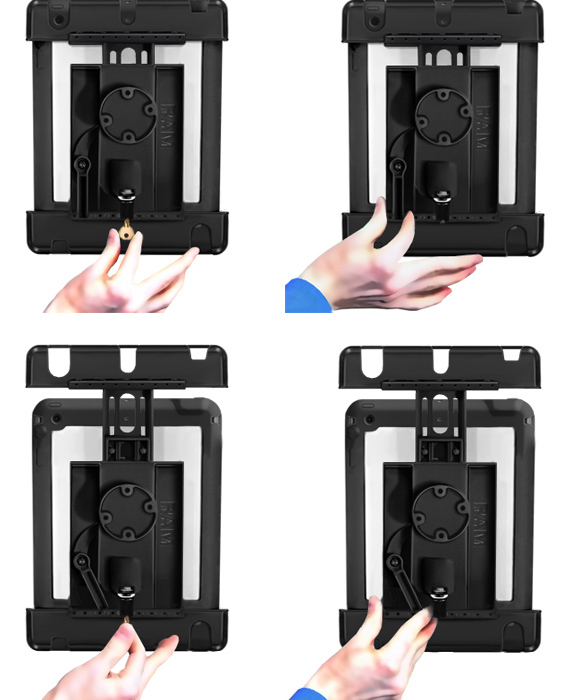

The RAM-HOL-TABL20U consists of a spring loaded back plate, custom support cups and locking mechanism offers theft deterrence and unwanted tampering in public settings. This spring loaded design makes it easy to load and unload your iPad Air, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your iPad, allowing access to audio jacks, usb, power, and other ports, your iPad can be used just as it was intended. Quickly lock the cradle, keeping your iPad Air secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

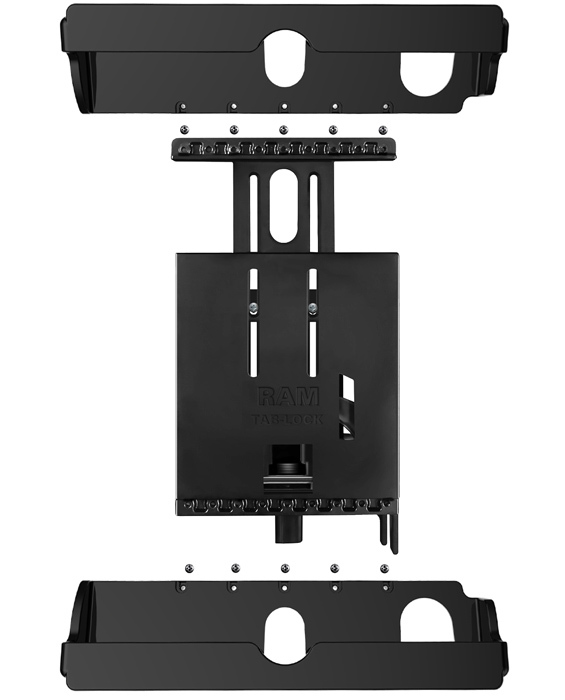

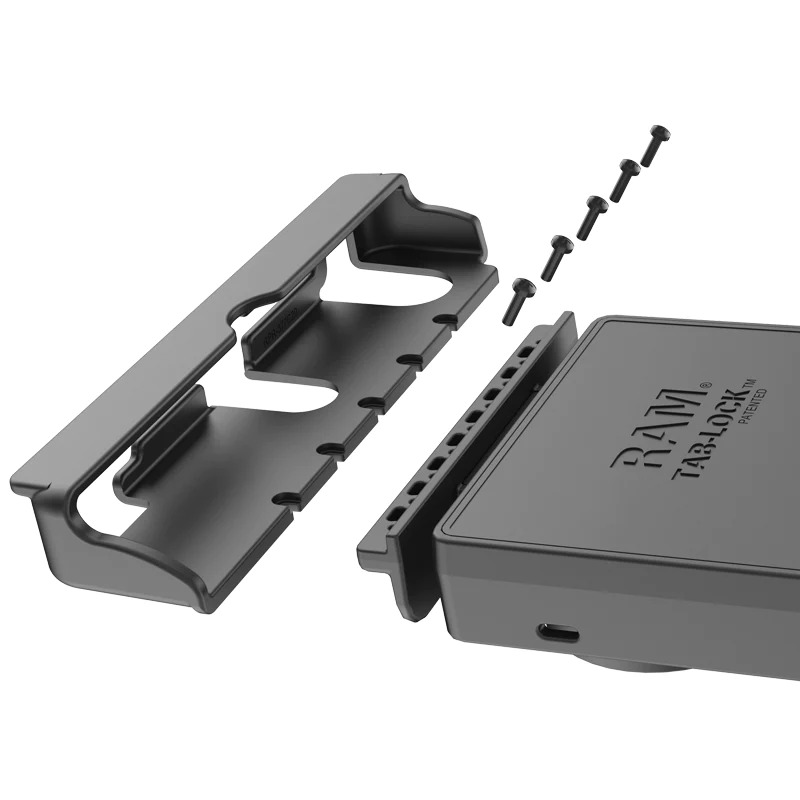

The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet.

The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Will suit the following tablets:

Apple
iPad (5th Generation) with Case
iPad (6th Generation) with Case
iPad (7th Generation) with Case
iPad (8th Generation) with Case
iPad (9th Generation) with Case
iPad (10th Generation) with Case
iPad 9.7 (2017) with Case
iPad 9.7 (2018) with Case
iPad Air with Case
iPad Air 2 with Case
iPad Pro 10.5 (2nd Generation) with Case

ASUS
ZenPad 10 with Case
ZenPad 3S 10 with Case
ZenPad Z10 with Case

Huawei
MediaPad M2 10.0 with Case

Lenovo
Tab 2 A10-70 with Case
Tab 4 10 with Case
Tab 4 10 Plus with Case
Tab3 10 Business with Case
Yoga Tab 3 10 with Case

LG
G Pad 10.1 with Case
G Pad II 10.1 with Case
G Pad X 10.1 with Case
G Pad X II 10.1 with Case

Microsoft
Surface Go with Case
Surface Go 2 with Case

Samsung
Galaxy Tab 10.1 with Case
Galaxy Tab 3 10.1 with Case
Galaxy Tab 8.9 with Case
Galaxy Tab A 9.7 with Case
Galaxy Tab A 10.5 with Case
Galaxy Tab Pro 10.1 with Case
Galaxy Tab S2 9.7 with Case
Galaxy Tab S3 9.7 with Case
Galaxy Tab S4 10.5 with Case
Galaxy Tab S6 with Case
Galaxy Tab S7 with Case
Galaxy Tab S8 with Case

Sony
Xperia Tablet Z with Case

Vankyo
MatrixPad Z4 10"

Specifications:

• Cradle Dimensions:
  Height: 9.25" to 11.375"
  Width: 6.55" to 7.43"
  Depth: 0.3" to 0.875"
• Locking mechanism for theft deterrence
• Support cups contain open slots to accommodate for tablets of various sizes
• Back plate can support various size support cups
• Spring loaded tension provides secure support for your tablet
• Spring loaded cradle allows for quick release of your tablet
• High strength materials maximize longevity of cradle
• Full access to all ports
• Lifetime warranty
• Material: High Strength Composite

Note: The "U" in the part number reflects product packaged in poly bag.

Tab-Lock™ Universal Locking Cradle Instructions (PDF)
