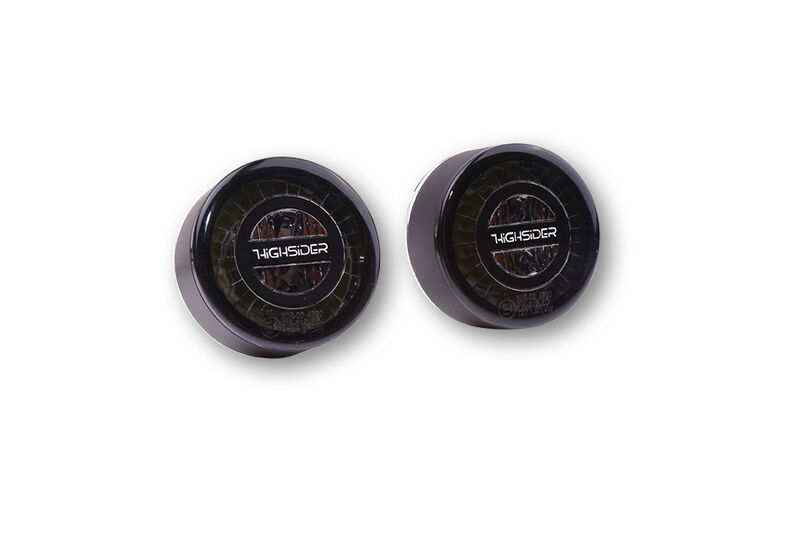

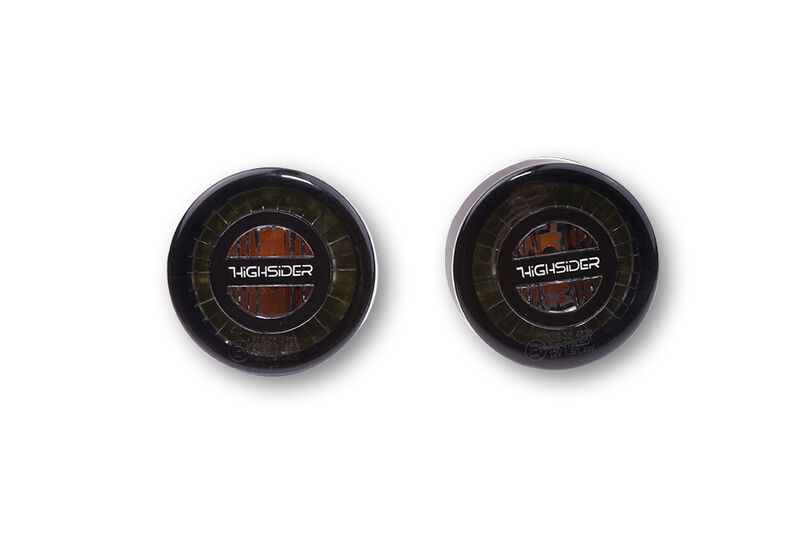

Indicator/position light combination HIGHSIDER Rocket LED – suitable for installation or surface mounting – with a black aluminium ring and tinted glass. For front E-approved.

In this innovative lighting technology, 6 very bright SMD LEDs are installed in the center, which allow an extremely small design. The outer ring, on the other hand, consists of the new COB technology (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs. This combination is supplied with a black anodised aluminium ring that fits over the base body, installation location: front.

With the innovative turn signal series from HIGHSIDER. Don’t just show where you’re going, show who you are.
This is trend-setting design at its finest.

Dimensions:
A1: 18 mm
A2: 15 mm
D1: 45 mm
D2: 43 mm
Fixing bolt: M8 x 1.25 mm, length: 18 mm

Connections:
Black cable = ground (-)
Yellow cable = turn signal (+)
White cable: Position light (+)

Scope of delivery: 1 pair

Note:
The combination can be installed flat without an aluminium ring, so that only the lens is visible. A 40 mm hole must be drilled for this purpose.
Alternatively, the combination with the aluminum ring can be mounted on e.g. a retaining plate on the vehicle.
