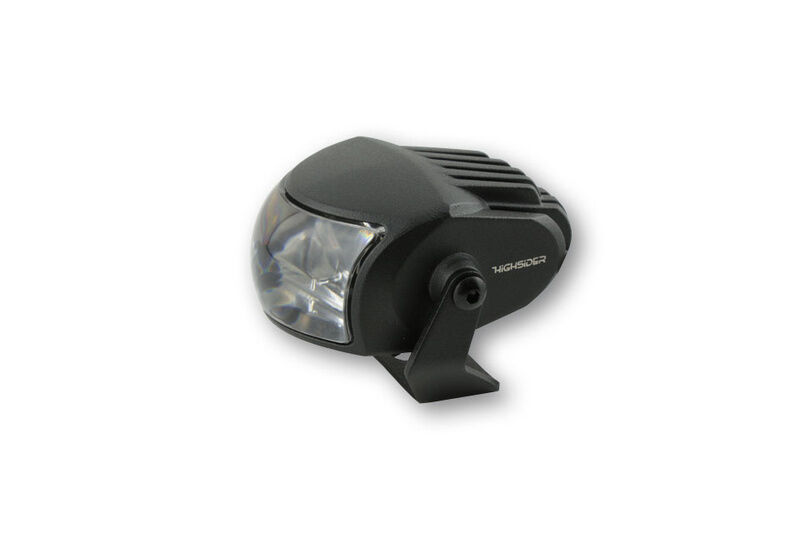

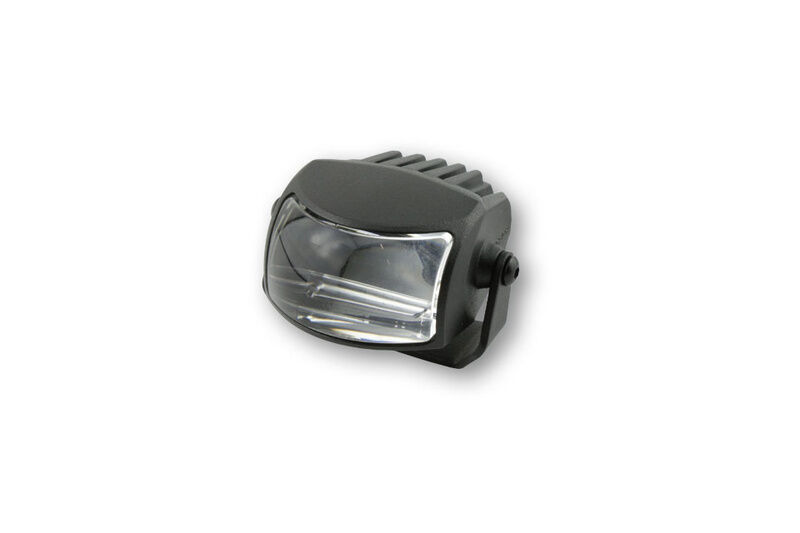

HIGHSIDER Comet-Low LED low beam headlight, E-tested

Tiny little LED low beam headlight in a matt black aluminium housing with sturdy steel bracket. Thanks to the use of modern LED technology, it is possible to achieve the smallest possible housing dimensions while at the same time achieving the highest possible luminous efficacy. The three powerful SMD LEDs with oval lens produce a symmetrical bright light for increased visibility. Another advantage is a significant reduction in the load on the alternator due to the low power consumption.

Overview special features:
Tiny: Only 3.6 cm high and 5.5 cm wide
Robust: Thanks to aluminum housing and holder made of steel
Powerful SMD- LEDs for more visibility
Sporty design and light color
Low power consumption relieves the alternator
Together with the COMET-HIGH a true dream team (optionally available)

Dimensions:
Height: 36 mm
Width: 55 mm
Depth: 70 mm
Height lens: 24 mm
Width lens: 42 mm
Mounting hole spacing: 55 mm
Mounting holes on side: M4

Dimensions of box:
Width: 44.5 mm
Depth: 11 mm
Height: 17 mm
Weight: 128 g

Connections:
Red = positive (+)
The red wire connects to ignition positive (+)
Black = ground (-)

Scope of delivery: 1 piece incl.
1x screw
1x U- washer
1x nut
