HIGHSIDER universal adapter, long

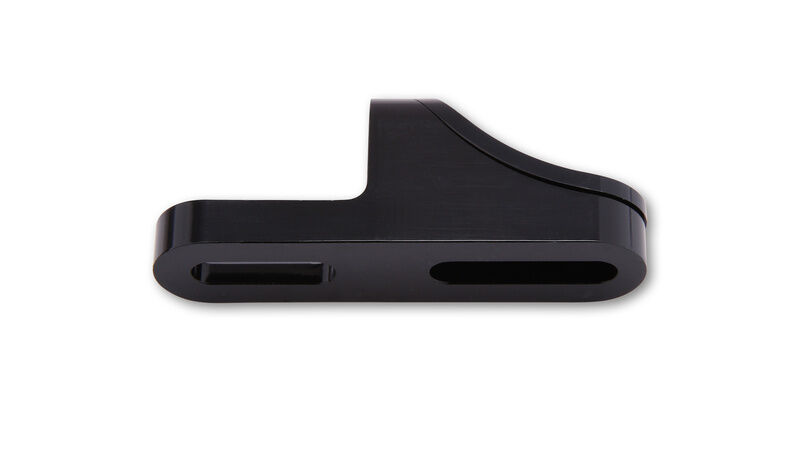

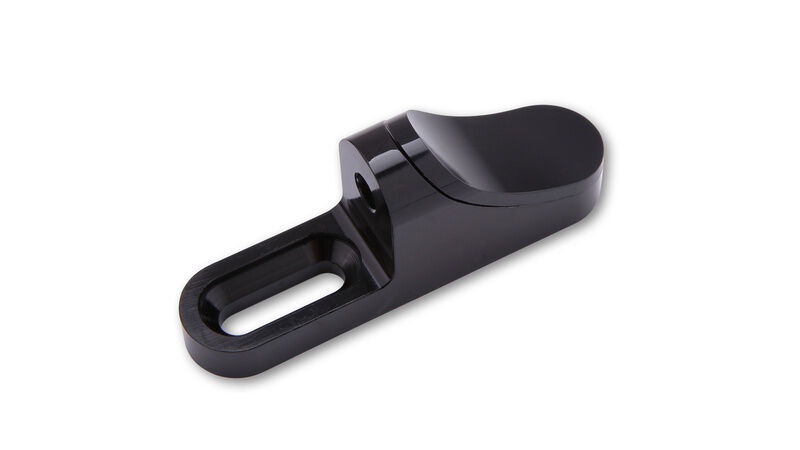

Black anodised universal adapter with cover made of aluminium for attaching fairing mirrors, e.g. to the fairing. The short version is suitable for fairing mirrors with the part numbers 1108363, 1108368, 1108384, 1108395 and 1108397.

Dimensions:
Overall length: 76 mm
Width: 18 mm
Screw hole spacing: 21 mm - 58 mm

Scope of supply:
2 x universal adapter black anodized, length x width: 76 mm x 18 mm
2 x flat head screw M6 hexagon socket (for mounting the handles)
4 x M6x10mm hexagon socket screw stainless steel
4 x M6x15mm hexagon socket screw stainless steel
4 x M6x20mm hexagon socket screw stainless steel
4 x M6x20mm hexagon socket screw stainless steel
4 x M6x25mm hexagon socket screw stainless steel
4 x M6x30mm hexagon socket screw stainless steel
4 x M6 self-locking nut
4 x washer, Diameter: 11.8 x 6 x 1.4 mm
4 x bush, diameter: 9.8 x 6 x 1 mm
4 x bush, diameter: 11 x 6 x 9.7 mm
4 x bush, diameter: 10.5 x 6 x 7 mm
