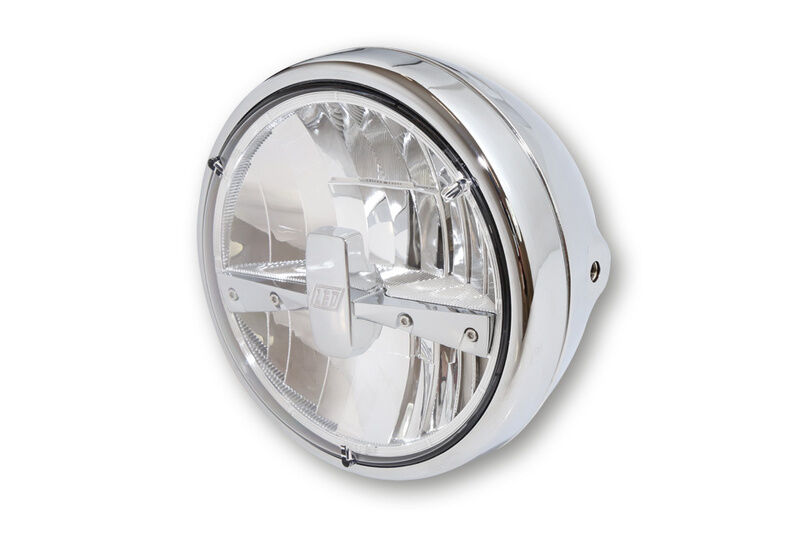

HIGHSIDER Reno Type 3 Headlight LED, 7 inch, metal housing, clear glass, side mounting, E-approved.

Innovative power LED headlight with parking light function and clear glass. The oval metal housing has a chrome-plated, asymmetrical reflector - only approved for right-hand traffic - E-approved.

Our highlights - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight every time!

Headlight dimensions:

• Housing diameter: 200 mm
• Headlight insert diameter: 178 mm
• Housing depth: 160 mm
• Distance between mounting holes (centre - centre): 170 mm
• Distance of fixing hole (centre) to end of housing: approx. 90 mm
• Mounting: laterally with M8 threaded bolts

Connections:

• White cable = low beam (+)
• Blue cable = high beam (+)
• Green cable = ground (-)
• Grey extra cable = LED position light (+)
• Black extra cable = ground (-)

Scope of delivery: 1 piece, including 3-pin mating connector

NOTE: Use asymmetrical, only approved for right-hand traffic.
