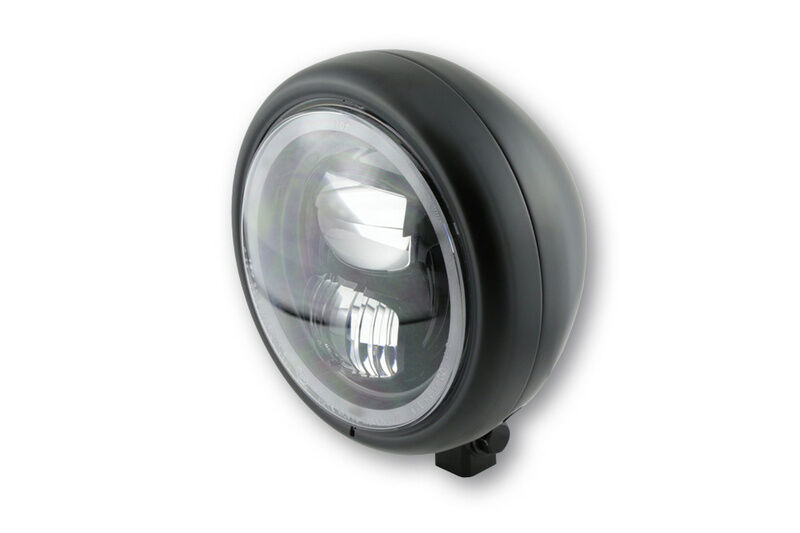

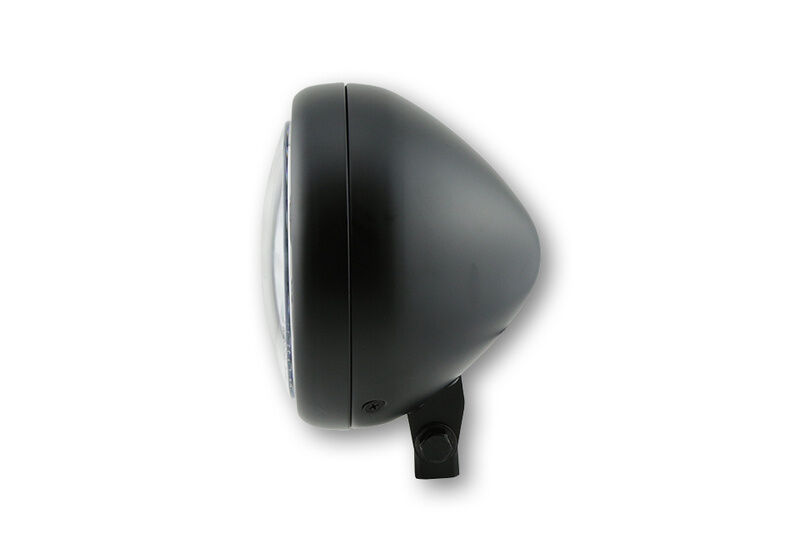

HIGHSIDER Pecos Type 7 LED Headlight, 5 3/4 inch with parking light ring, lower mounting, E-approved.

Main headlamp with matt black metal housing for lower Attachment. The Pecos Type 7 is characterised by the latest lighting technology and the extraordinary lighting design. The special feature of this LED headlight with parking light ring is the dark appearance thanks to mattblack housing and the unobtrusive reflector in black. In the upper part of the headlamp the low beam lights up and when the high beam is switched on both areas light up.

Properties:

• Light source: LED
• Glass: clear
• Black reflector with stand light ring
• Fixing point: bottom

Dimensions:

• Housing diameter: 165 mm
• Depth: 135mm

Connections:

• Power consumption: 3 Pin Connector
• White = Low beam (+)
• Red = High beam (+)
• Black = Ground (-)
• Green = Position light (+)

Supplied: 1 piece
