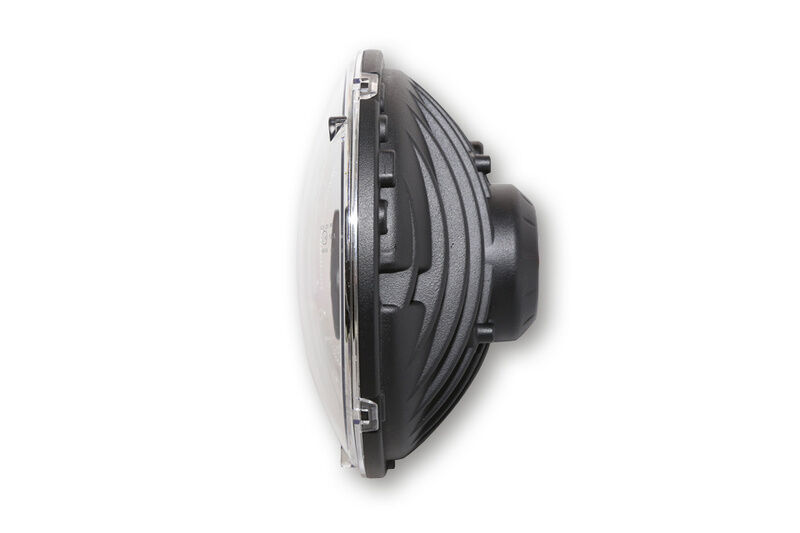

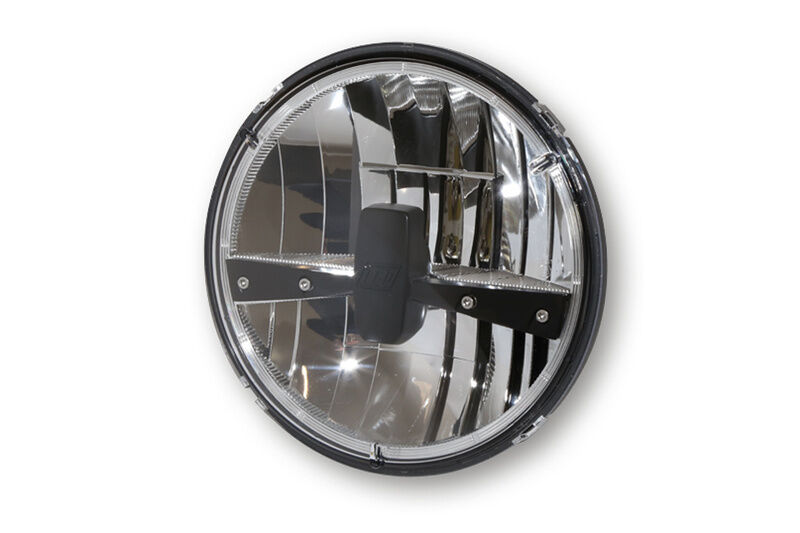

HIGHSIDER Type 3 LED Headlight round Insert, high-beam, low-beam and parking light, E-marked.

This round, chrome-plated reflector with black or chrome-plated bezel has high beam, low beam and parking light functions and emits an asymmetrical luminous flux – only permitted for right-hand traffic, E-approved.

Dimensions:

• Diameter A = 177 mm
• Diameter GA = 168 mm
• Diameter I = 160 mm
• T = 61 mm
• R = 10 mm

Connections:

• Black cable = Ground (-)
• Red cable = Low beam (+), Power consumption: at 12 Volt 18 Watt approx. 1132 Lumen.
• White cable = high beam (+), power consumption: at 12 Volt 30 Watt approx. 1770 Lumen.
• Brown cable = parking light (+), power consumption: at 12 Volt 0.7 Watt

Scope of supply: 1 piece

Notes:

• Application asymmetrical, approved for right-hand traffic only.
• Complete spotlight Art.-No. 1108616001 (223-146) and 1108615001 (223-148).
