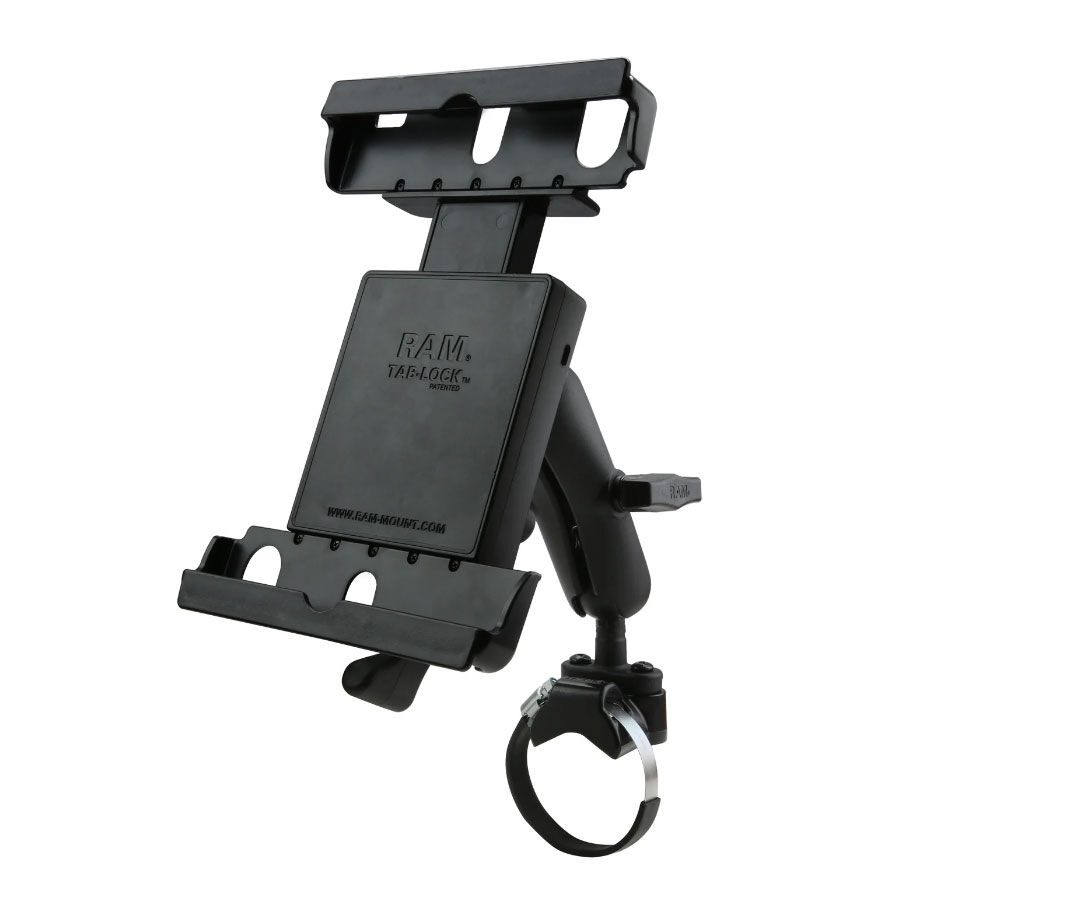

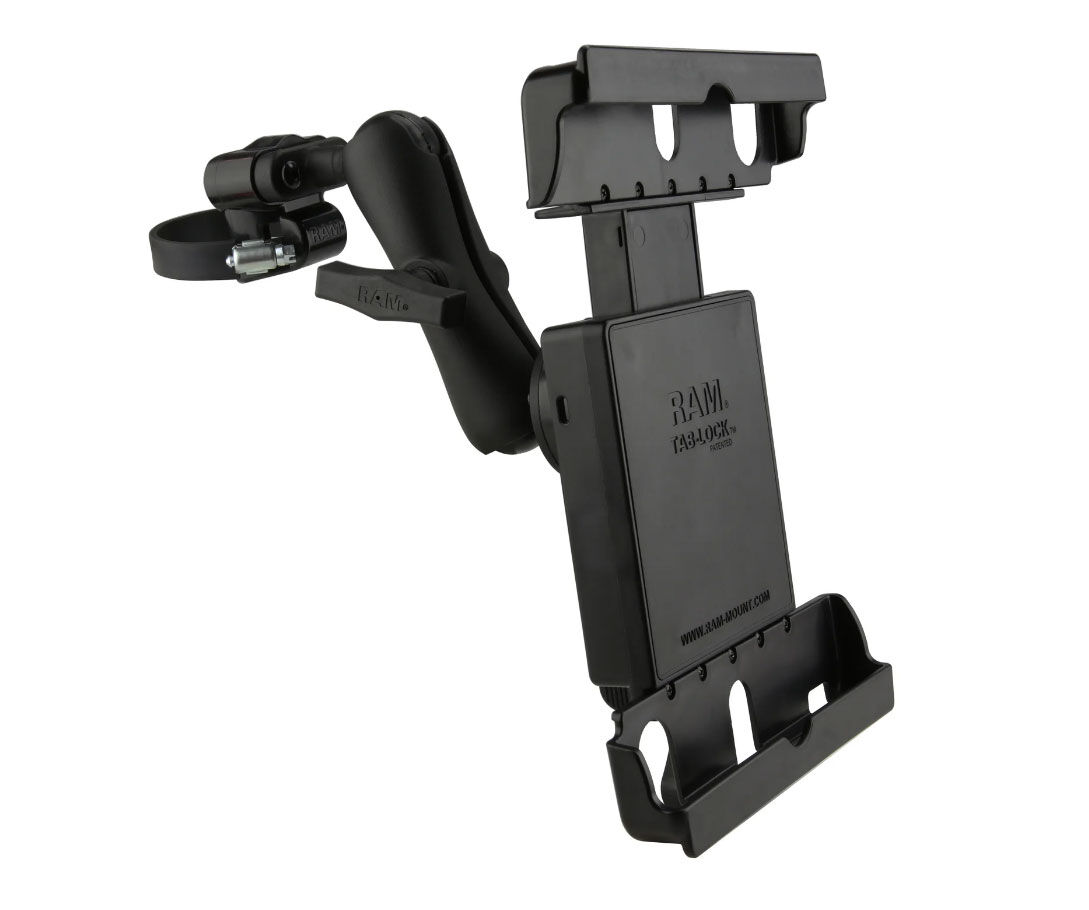

This heavy duty ATV/UTV mount is the perfect solution for securing most 9" tablets with case to virtually any roll bar or handlebar. Designed for a clean installation, the hose clamp base accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt, allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the u-bolt. The included RAM® Tab-Lock™ tablet holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
Includes rail and bar base for UTVs and ATVs with strap clamp and U-bolt components, 4-hole AMPS pattern ball adapter, and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty
hardware included
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions
Height Range: 9.25" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"
clamp range
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length
4.66"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
2.8 lb
