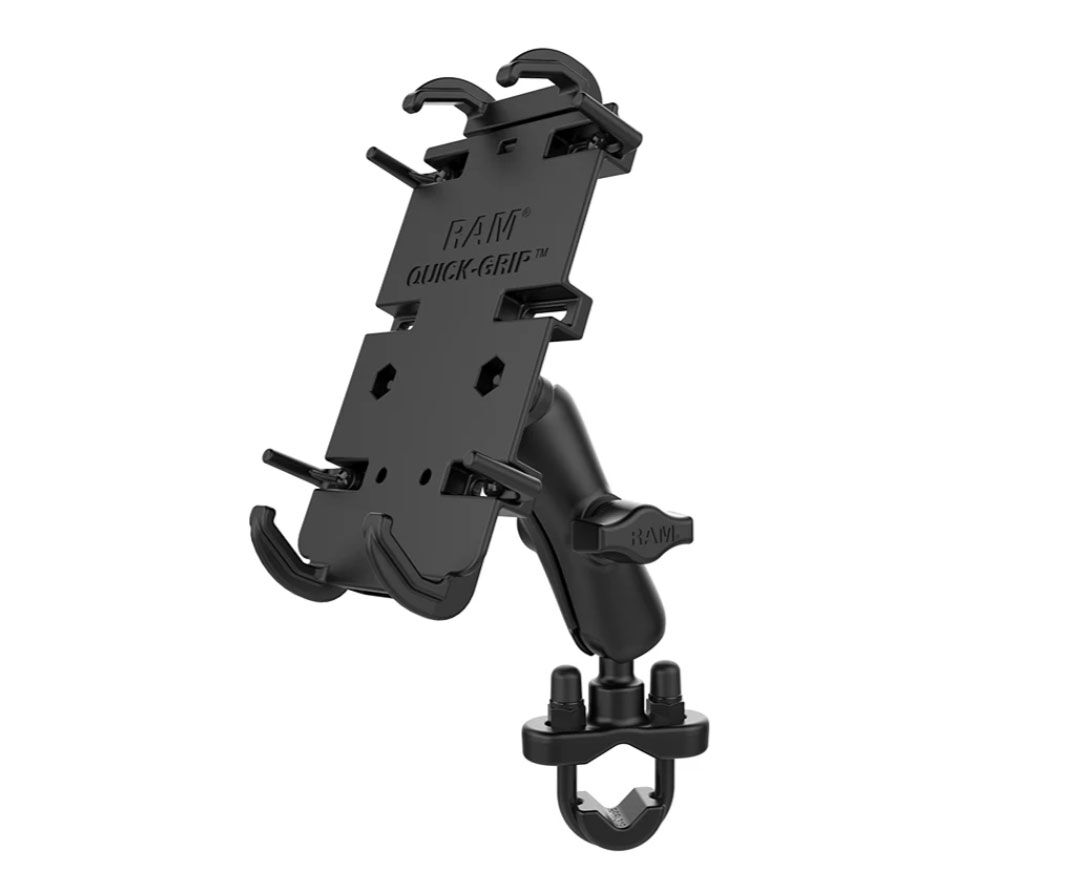

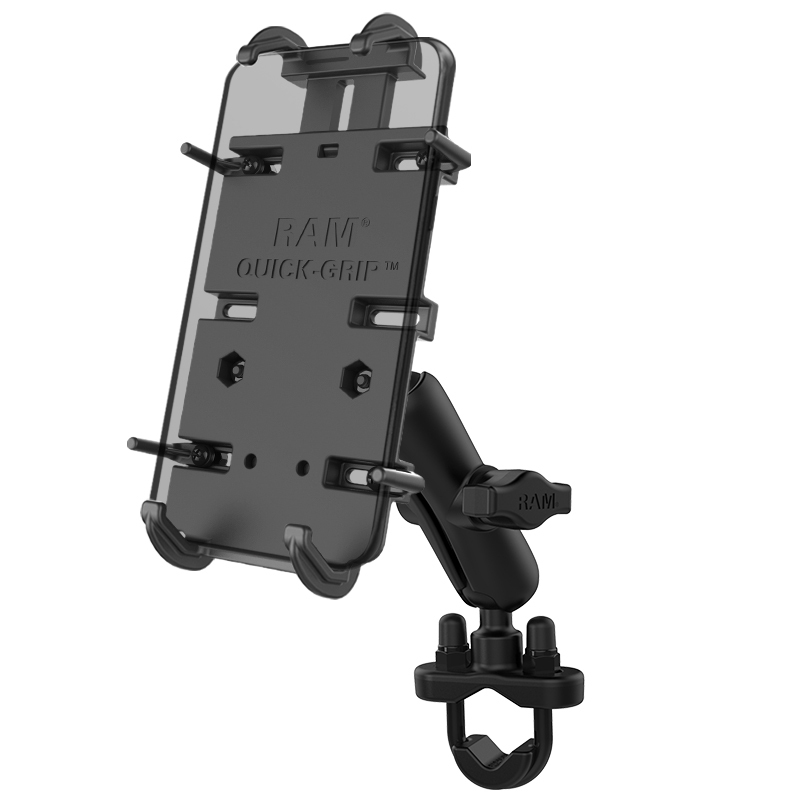

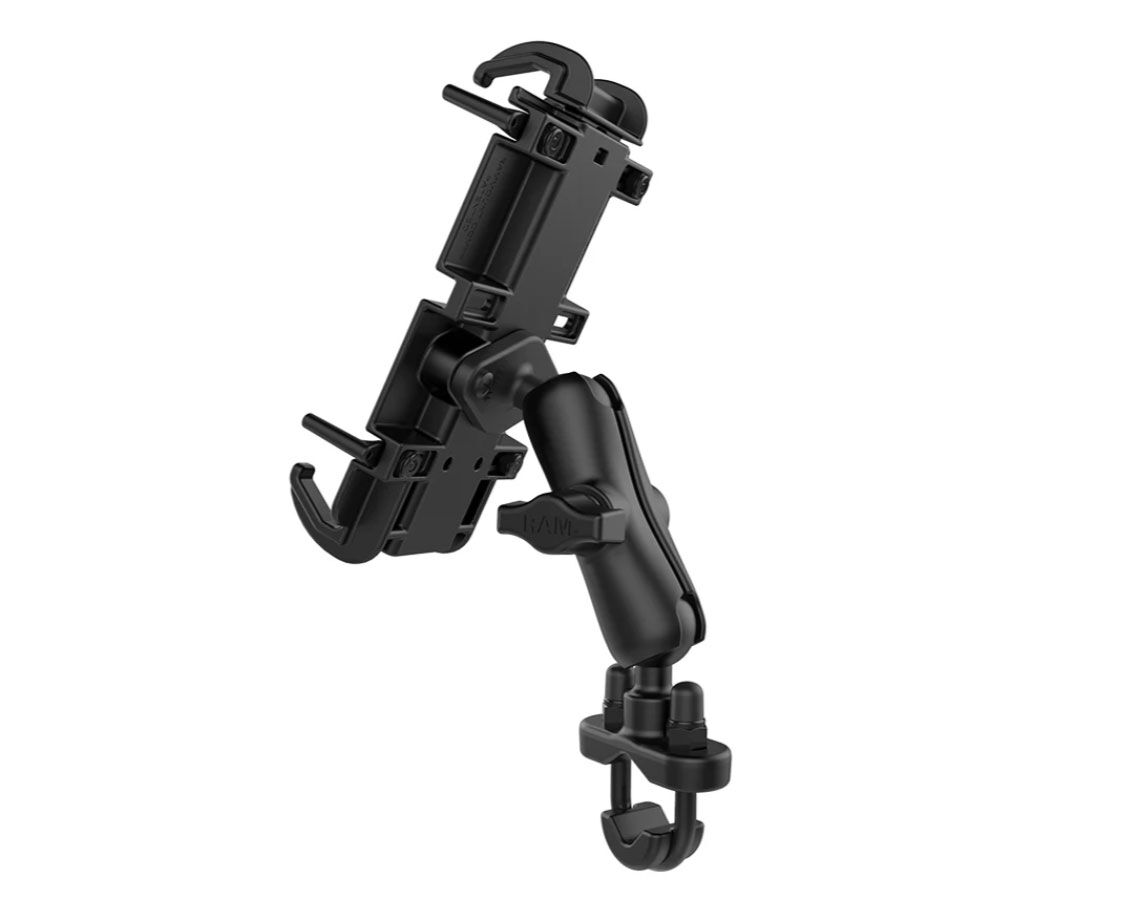

This version of the spring-loaded RAM® Quick-Grip™ holder provides a secure fit for a variety of large phones and other devices. Included is a medium length RAM® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter.

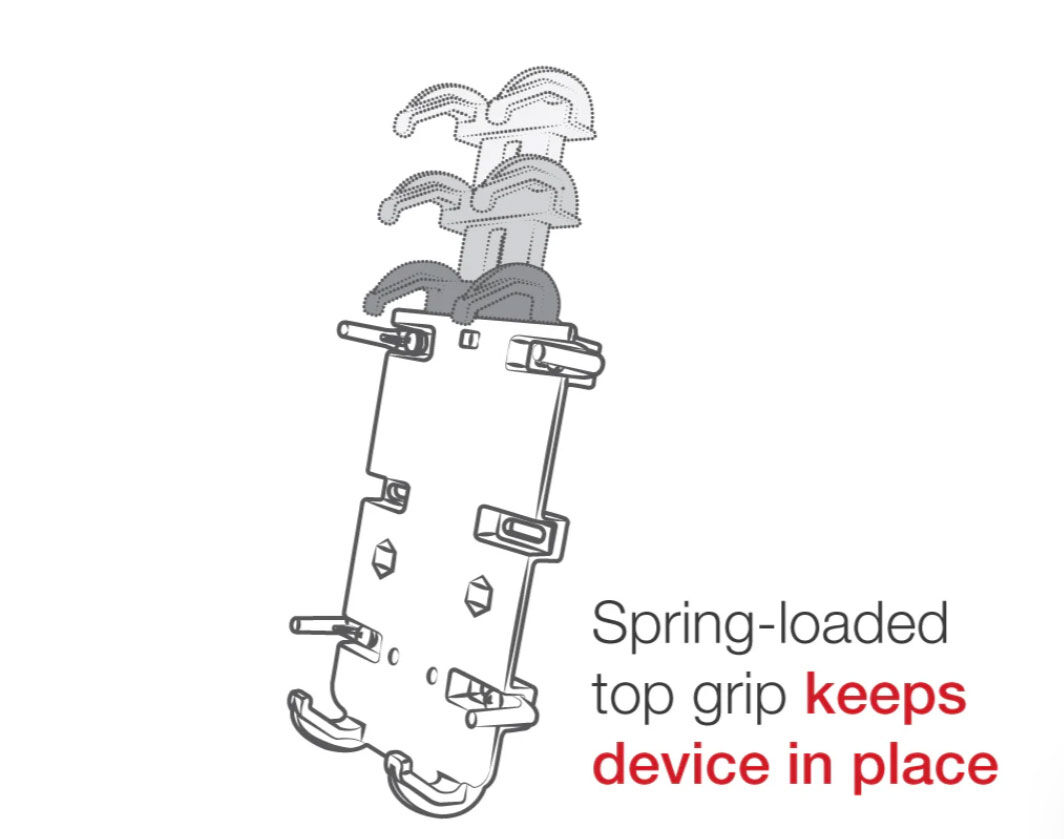

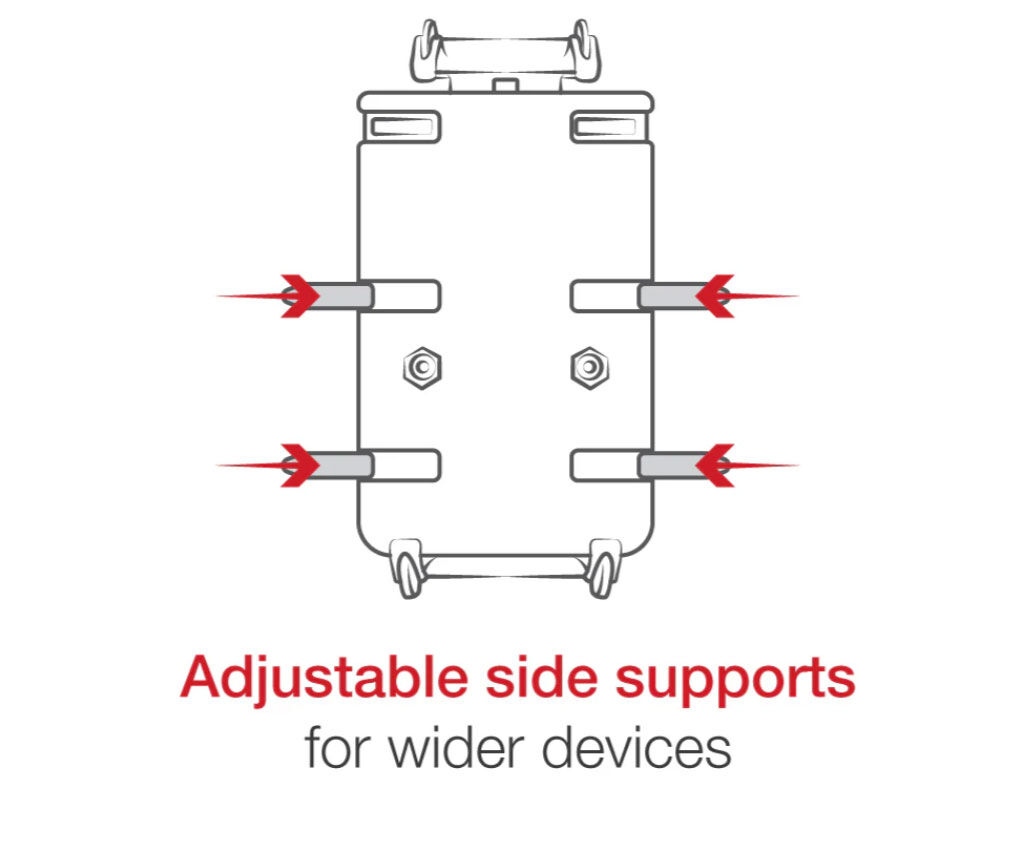

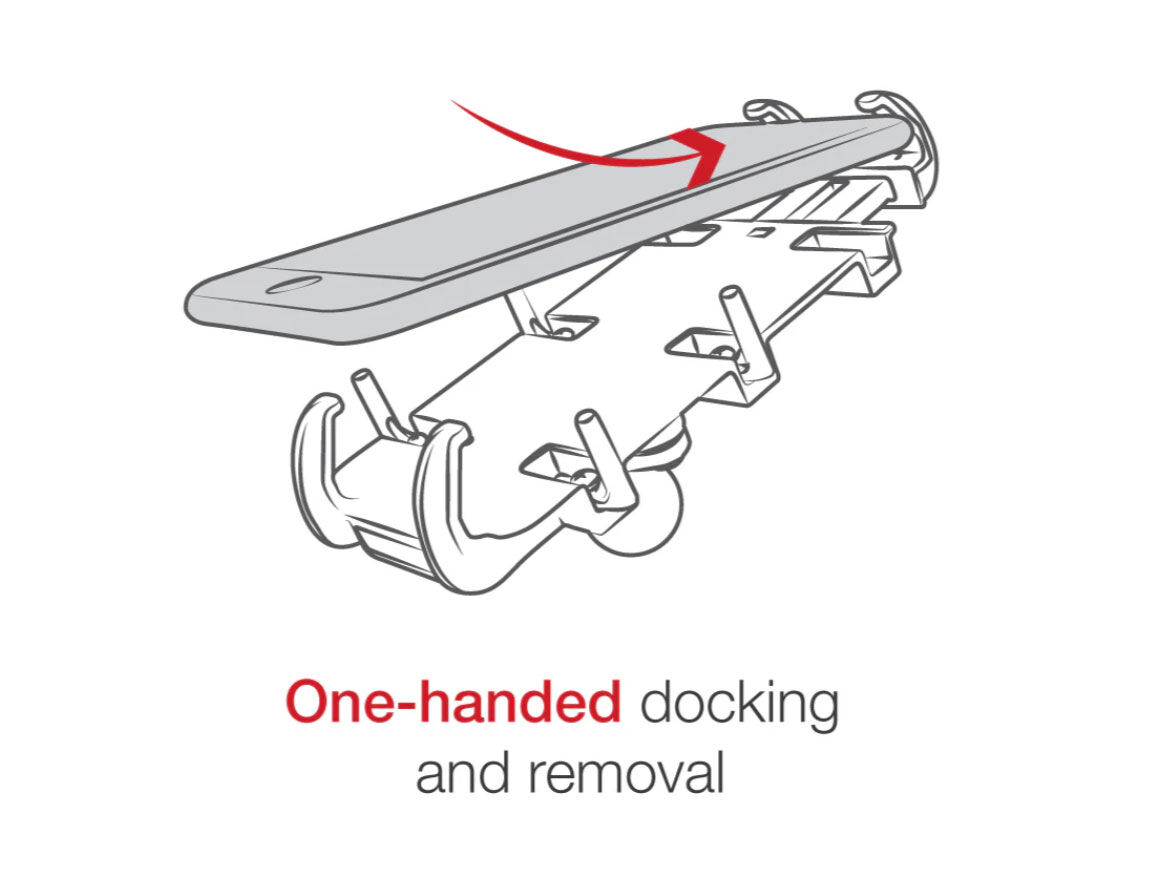

Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand

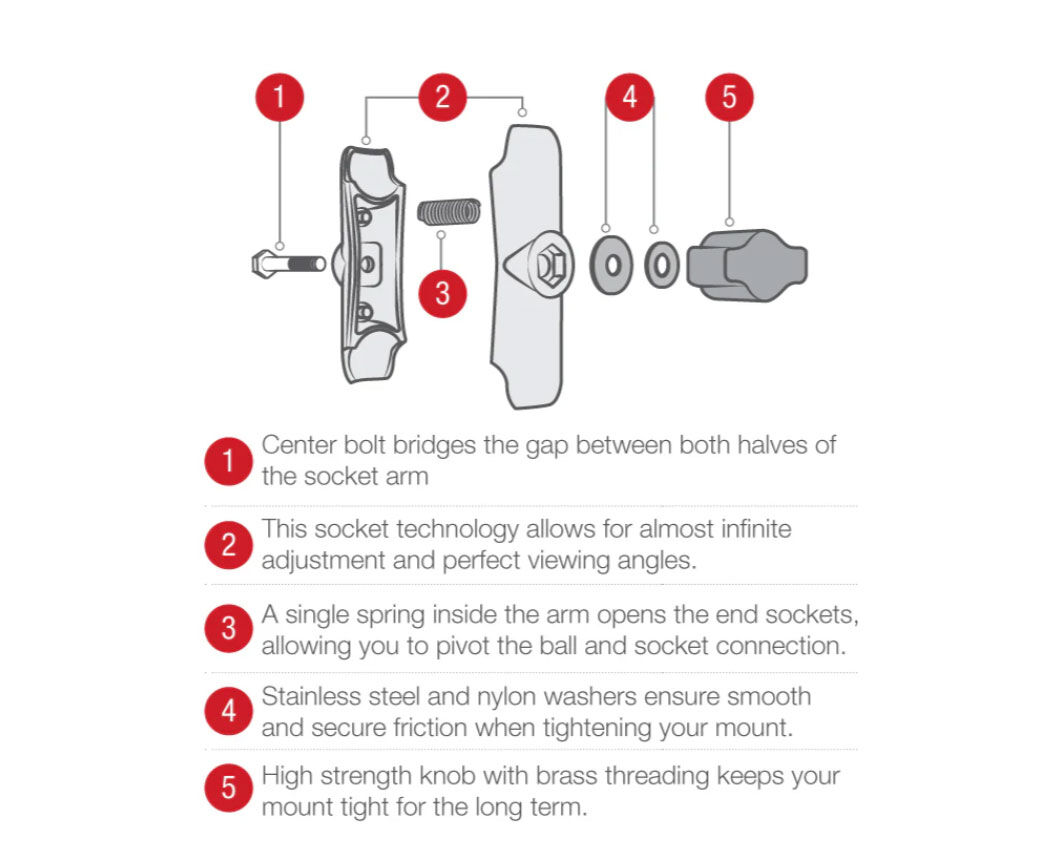

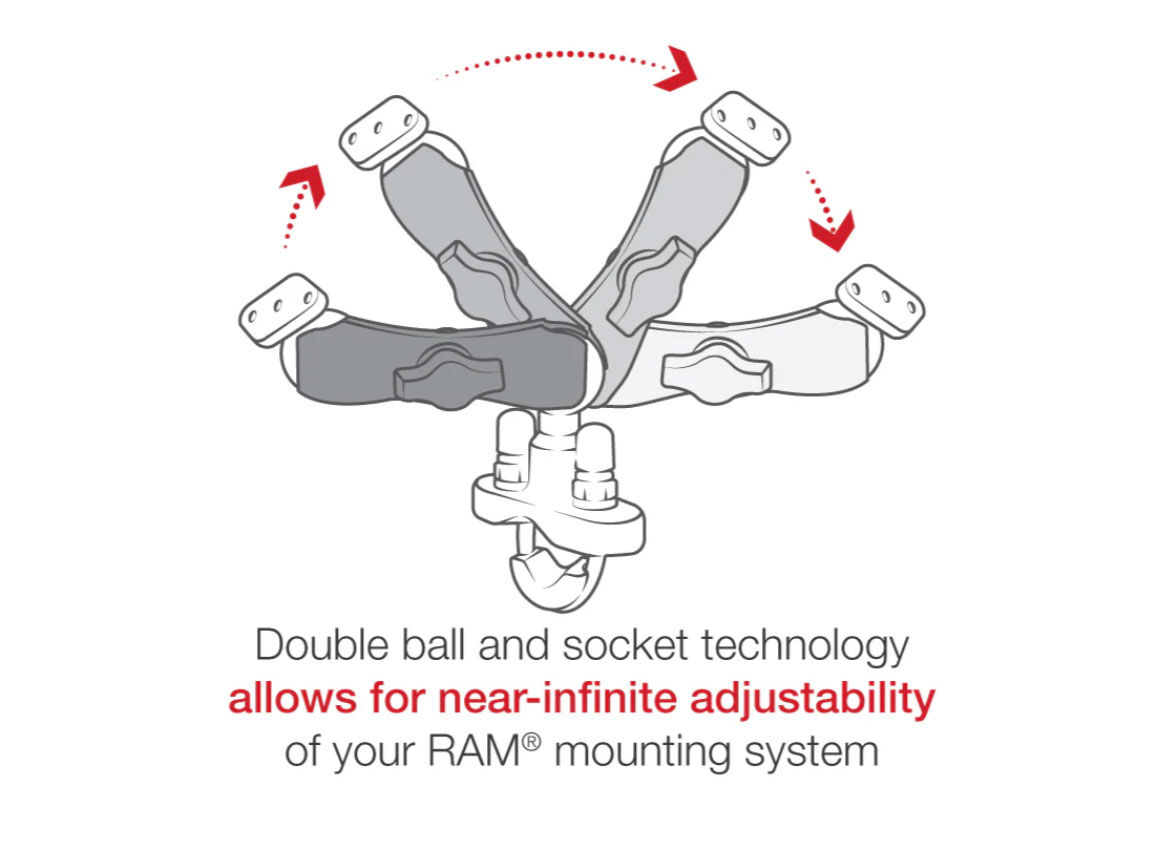

Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions
Height Range: 5.75" - 7.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"

clamp range
.5" - 1.25" diameter

socket to socket length
3"

ball size
B Size (1")

weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials
Marine-grade aluminum
High strength composite

packaging type
Poly Bag

Weight
0.94 lb
