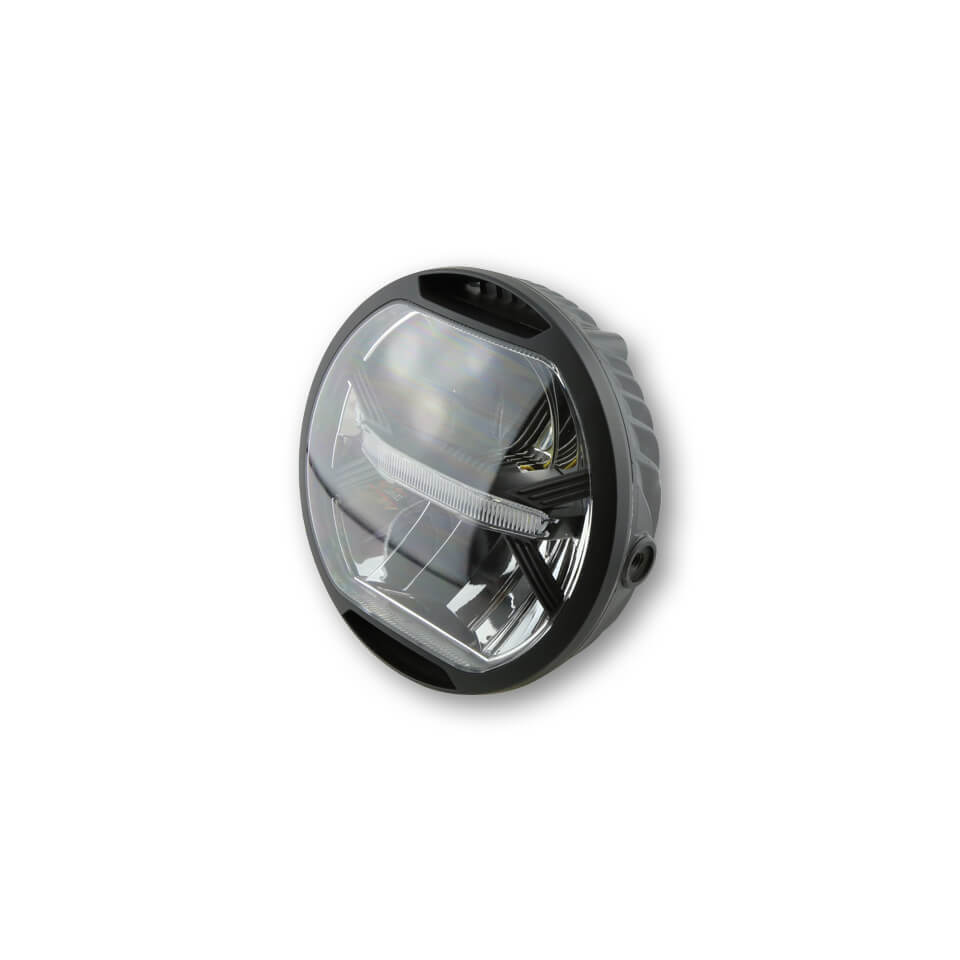

KOSO LED headlight THUNDERBOLT with parking light, black

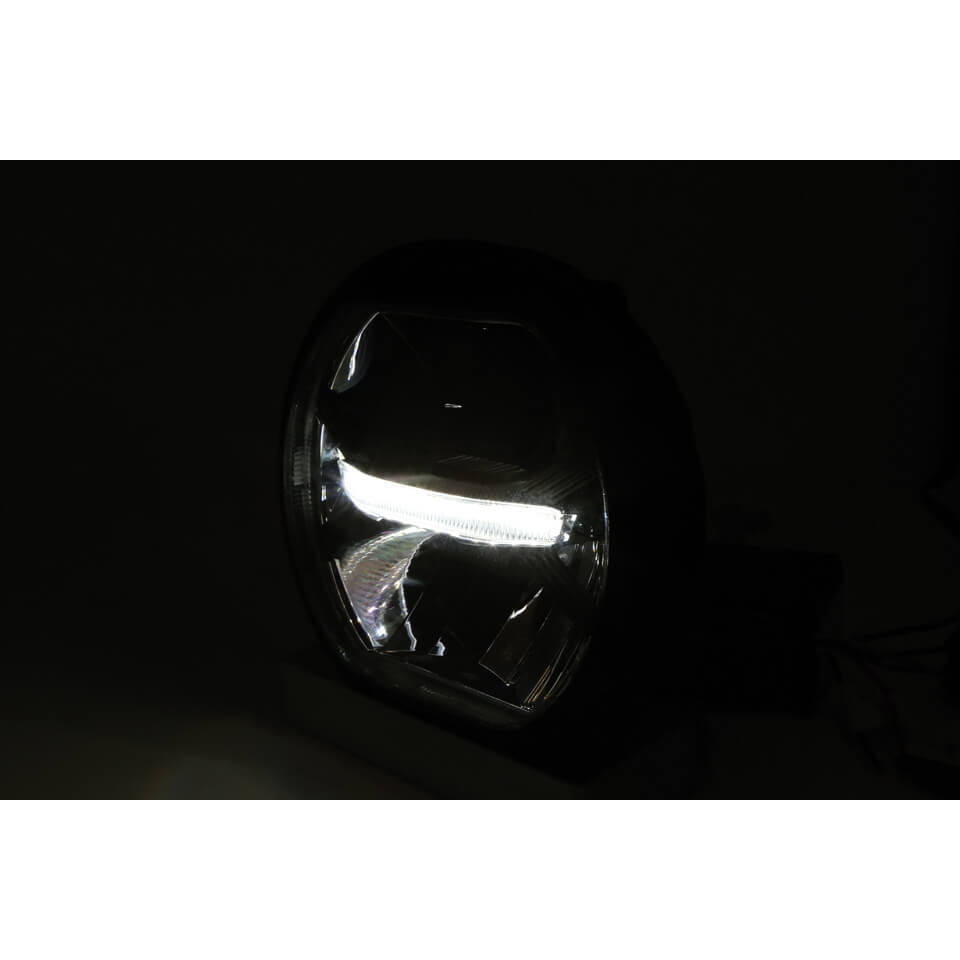

The futuristic LED headlight with its horizontal parking light strip in the middle has a very flat metal housing. The flat housing with its cooling fins on the rear not only looks great, but also simplifies the mounting on motorcycles where in the headlight area is not so much space to install. The upper and lower air ducts look dynamic and bring cooling airflow
to the cooling fins. In order to be even more flexible when mounting, the spotlight offers mounting options on the side and on the rear. There is an M8 thread on the left and right side. Six M6 threads, two each at the top, in the middle and at the bottom, are additionally

>br/>>>dimensions:
housing diameter: 170 mm
depth: 84 mm
distance between mounting hole (middle) and end of housing: approx. 48 mm

Connections:
3-pin Combination plug
yellow = dipped beam (+)
blue = remote (+)
black = ground (-)
extra cable:
white = position light (+)
black = ground (-)

scope of supply: 1 piece

• Item No.    223-200
• Outer Diameter mm    170.00
• Barcode    4054783254392
• Homologation    E-approved
• Illuminant    LED
• Material    Aluminium
• Depth range    84.00
