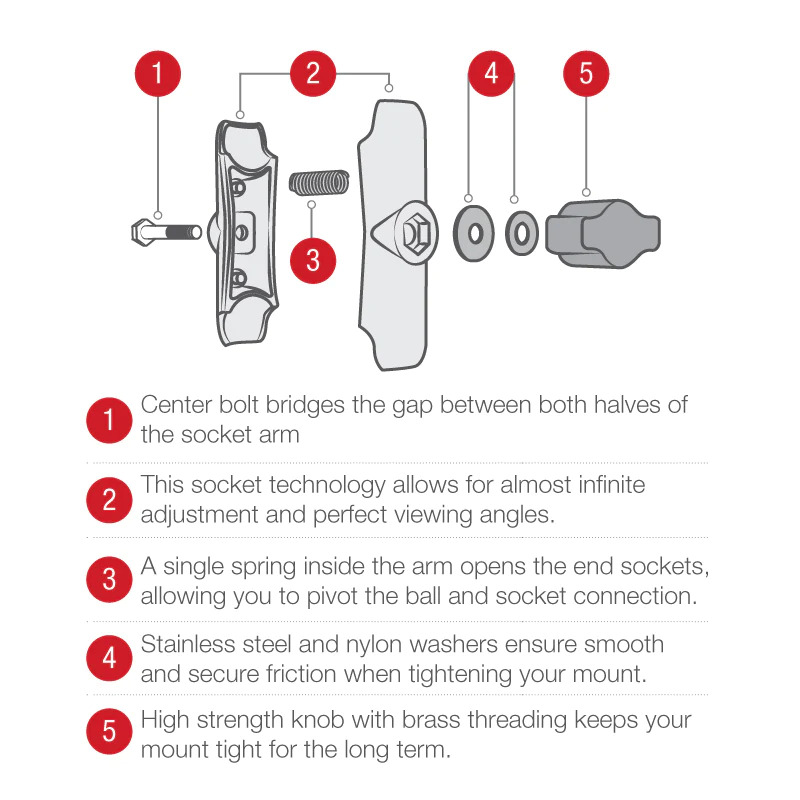

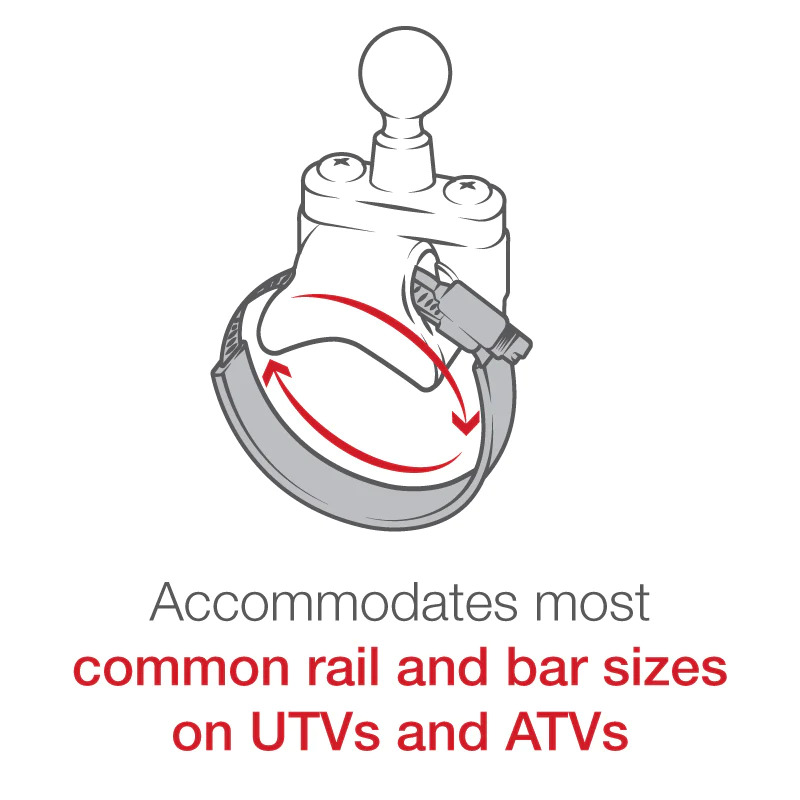

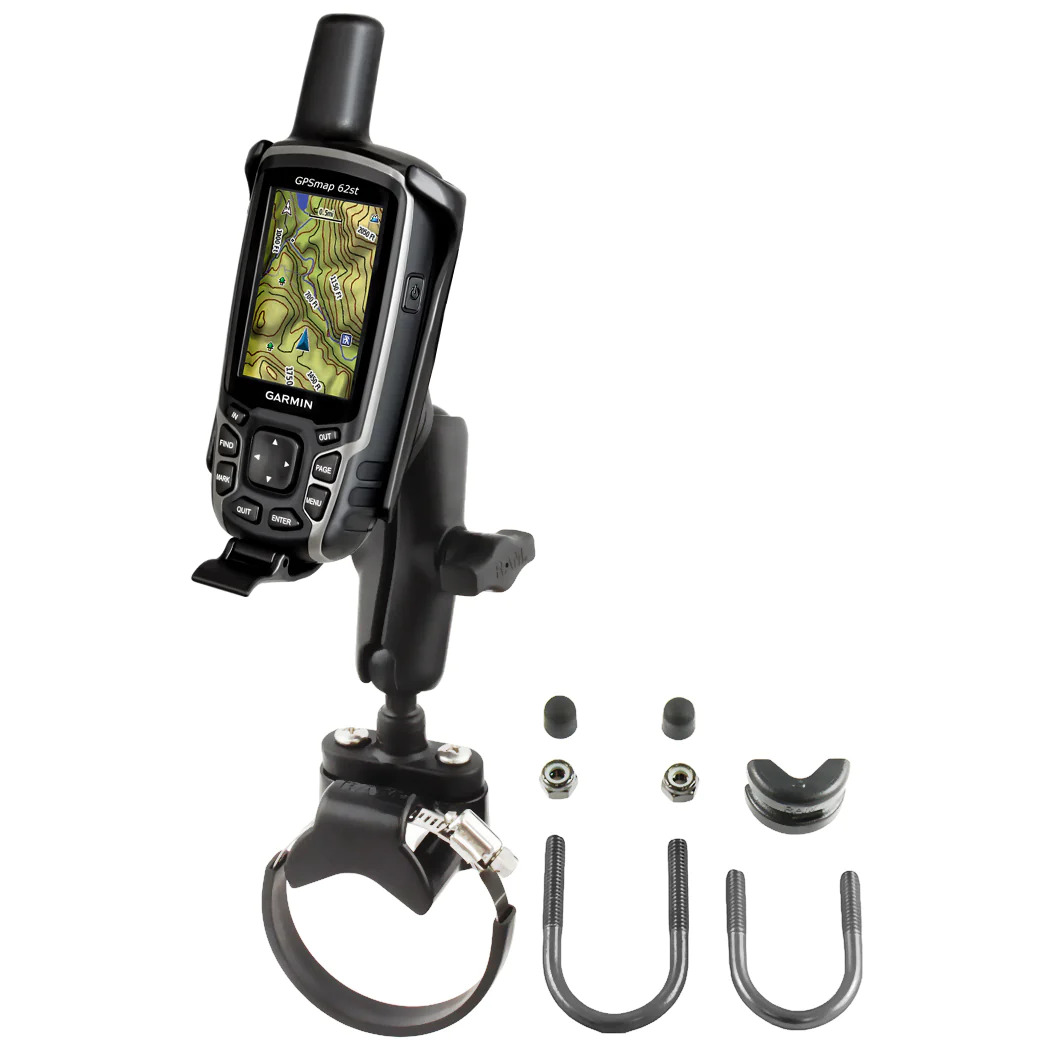

The RAM-B-149Z-2-GA41U consists of a steel strap base, u-bolt bases, double socket, diamond adapter base and high strength composite cradle. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. With the ball base in place, you have the foundation for mounting everything from GPS Devices, RAM Aqua Boxes, Spotlights and Radios. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

SOCKET TO SOCKET LENGTH
3"

BALL SIZE
B Size (1")

WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.3 lb

Will suit:

Astro 320

Astro 430

GPSMAP 62

GPSMAP 62s

GPSMAP 62sc

GPSMAP 62st

GPSMAP 62stc

GPSMAP 64

GPSMAP 64s

GPSMAP 64sc

GPSMAP 64st
