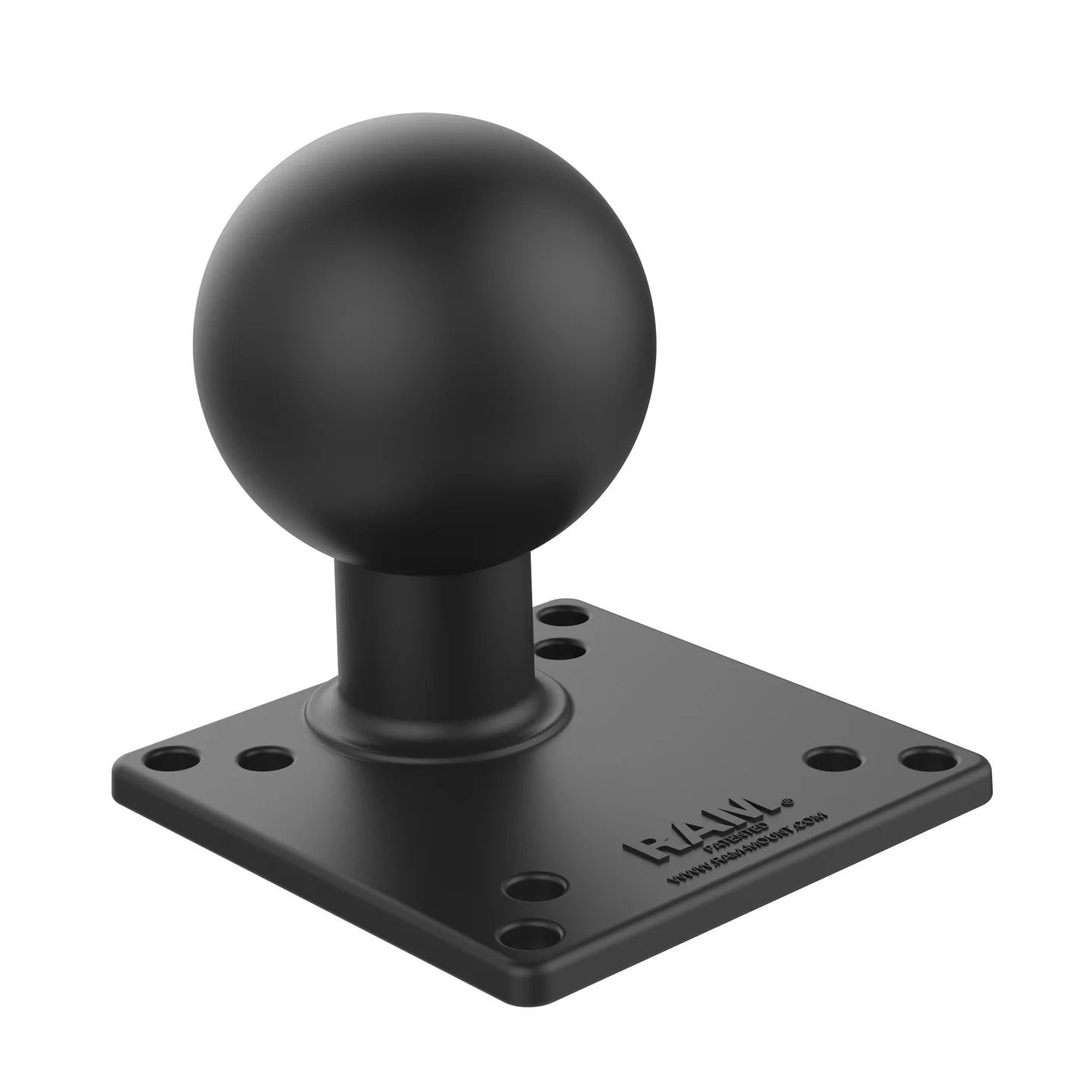

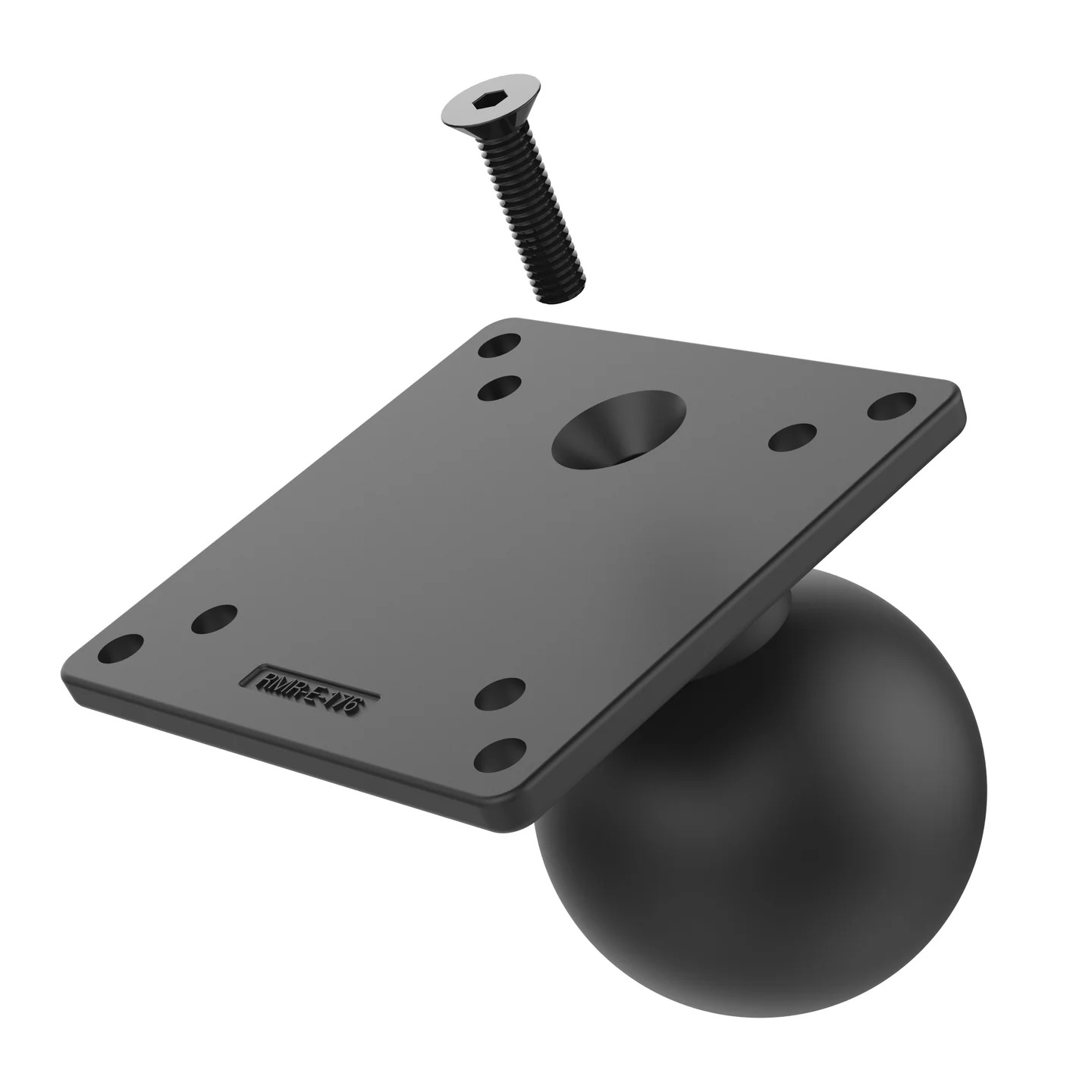

The RAM-E-246U-IN1 consists of a 3.38" rubber ball, connected to a 4.75" square plate with 4x100mm holes and 4x75mm holes in each corner. This product is a steel reinforced VESA plate due to a steel screw that is included in the structure of the VESA plate, enhancing structural integrity of the component. This additional screw is the reason why the RAM-E-246U-IN1 is slightly heavier than the RAM-E-246U.

HOLE PATTERN
See Drawing below

BALL SIZE
E Size (3.35")

WEIGHT CAPACITY
Standard Use: 15 lbs
Heavy-Duty Use: 10 lbs

MATERIALS
Marine-grade aluminium

PACKAGING TYPE
Poly Bag

WEIGHT
2.03 lb

Hole Pattern (PDF)

RRP 138.95
Brand RAM Mounts
