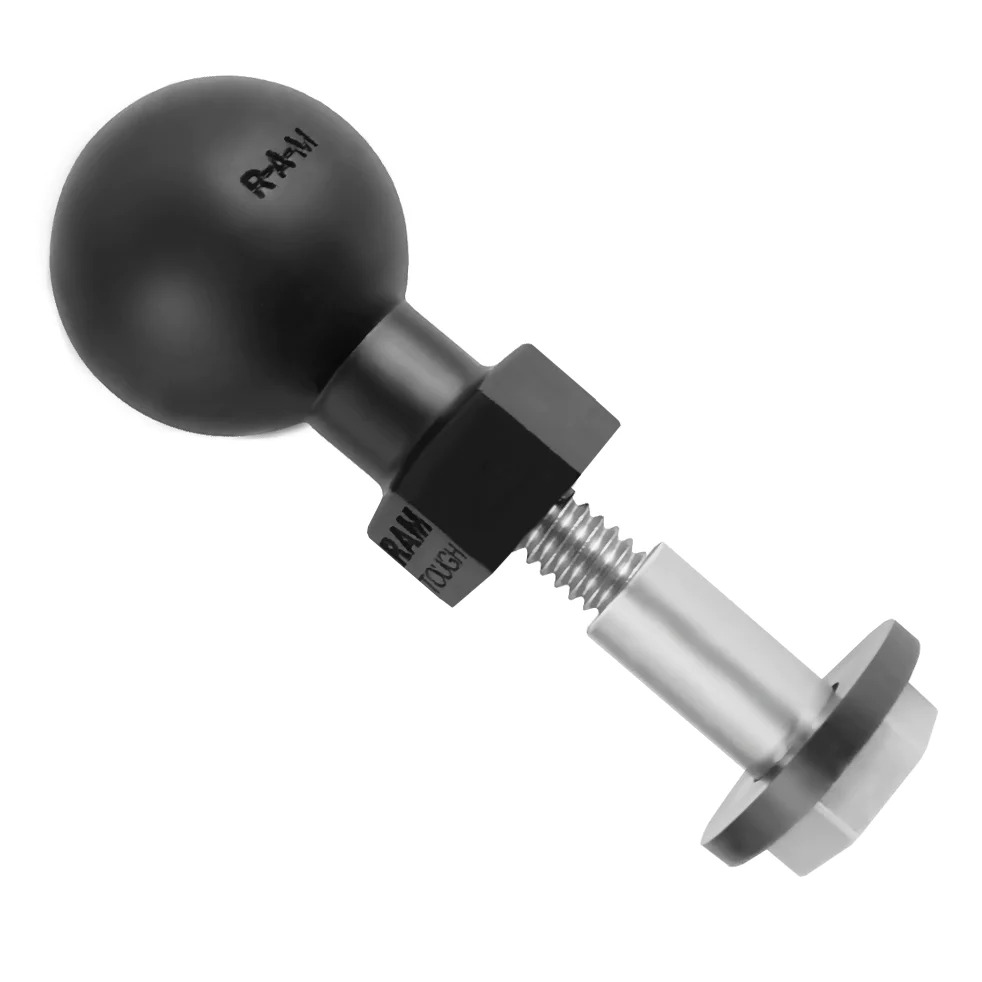

The RAP-B-379-HA1U consists of a 1/4"-20 X 1" thread, connected to a 1" diameter ball, female blind barrel nut and nylon washer.

HARDWARE INCLUDED
(1) 1/4"-20 x .87" Barrel Nut
(1) .77" Nylon Washer

BALL SIZE
B Size (1")

WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS
High strength composite
Stainless steel threads

PACKAGING TYPE
Poly Bag

WEIGHT
0.09 lb

ADDITIONAL INFORMATION
For bikes equipped with a hydraulic clutch, modification of the included washer may be required for proper installation.

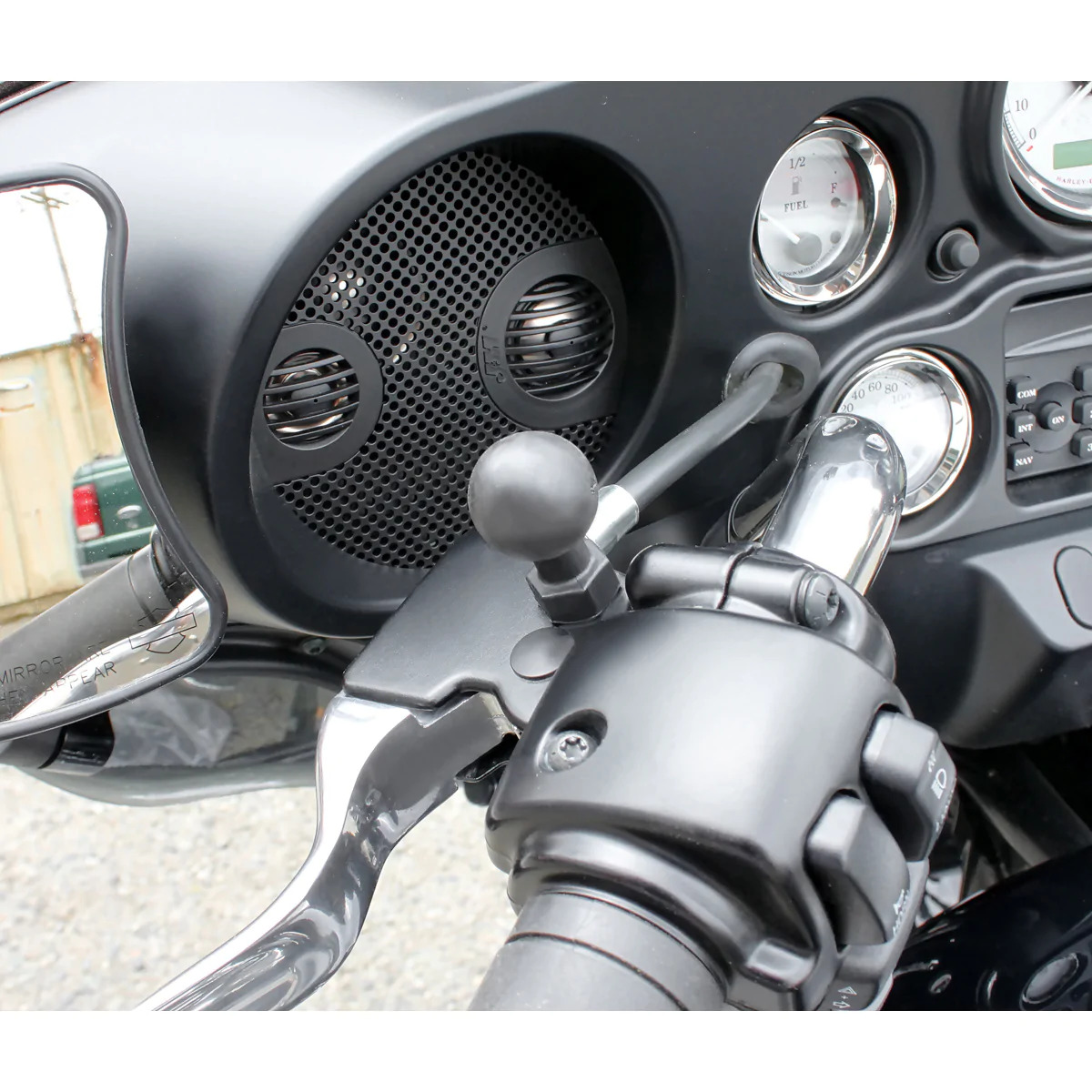

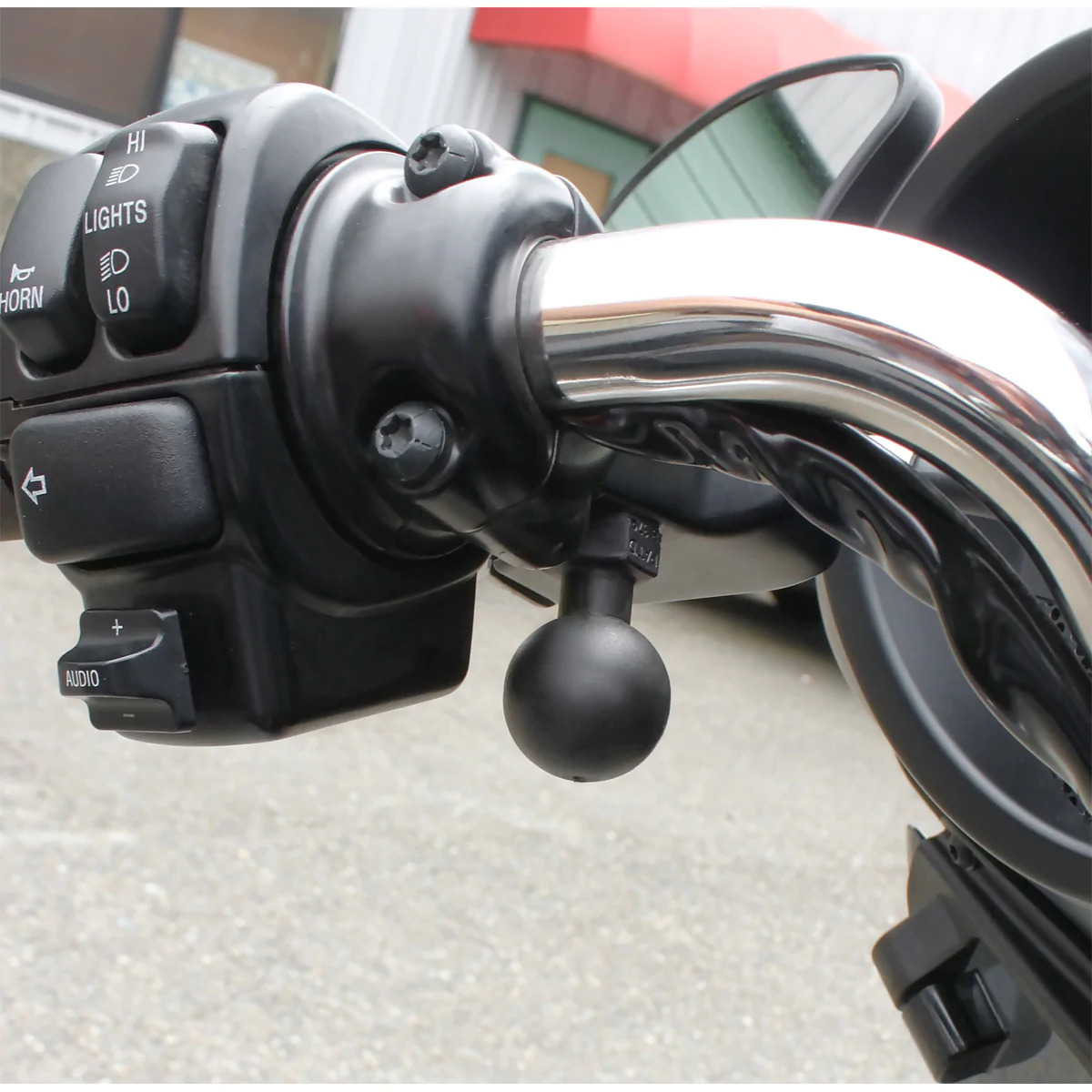

Installation Instructions:
1. Locate fairing mirror holes.
2. Place the nylon washer over the barrel nut. Insert the barrel nut into the hole on the controls.
3. Screw the threaded ball into the barrel nut from the other side of the hole. Tighten with 5/8" and 1/2" wrench.
